Folding Back Seats Electric Golf Cart 4 Seats CE Approved

Brand Name : Excar

Model Number : A1S2+2

Certification : CE, ISO

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 units per month

Delivery Time : 20 days

Packaging Details : None

Color : Based On Pantone Number

Batteries : Lead-acid Wet Batteries USA Trojan T-875

Motor : ADC Separately Excited Motor 3.7w

Max. Forward Speed : 25KM/H-40KM/H

Transaxle : Italy Graziano Axle 12:1

Controller : USA Curtis Controller 275A

Warranty : 1 Year Sicne The Day To Ship Out

Min Turning Radius : 2.9m

Range : 80-100km

Suitable for : Golf Course, Hotel

Power Fuel : Electric

HS Code : 87031019

Contact Now

Product Description

Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor ADC brand Separately excited
DC motor 48V 3.7kw		 ADC brand Separately excited
AC motor 48V 3kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle Italian GRAZIANO axle
with gear ration 1:12		 Italian GRAZIANO axle
with gear ration 1:16
Charger High Frequency onboard charger
48V/17A regulator		 High Frequency onboard charger
48V/17A regulator




Performance



Model:A1S2+2
 Passenger capacity  4 person
 Chassis  Aluminum chassis
 Standard specification
 Dimension  3200*1200*2000mm
 Load  400kgs
 Groad clearance  150mm
 F/R tyre distant  860/970mm
 Wheelbase  1670mm
 Net weight(ex.Bat)  400kg
 Climbing capacity  30%
 Endurance mileage  80-100km
 Max forward speed  35km/h
 Drive system
 Motor  48V 3.7KW USA ADC
 Battery  USA Trojan T-875 6*8V
 Charger  KN offboard charger
 Tranaxle  Italian GRAZIANO gear ratio 1:12
 Controller  Curtis controller 48V 400A



Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories

.

Item Option description Item Option description
1  E-key 11  2-point seatbelt
2  Hinged windshield 12  Battery water refill system
3  Laminated windshield with wiper 13  Digital meter
4  Steel brush guard 14  EM brake
5  Front steel basket 15  Four wheel disc brake
6  Inner rear view mirror 16  Carlisle 205/50-10tyre with10inch wheel
7  Side rear view mirror 17  Ice box
8  Enclosure 18  Sand bottle
9  Sunshine cover 19  Sand rake
10  Golf bag cover 20  Ball washer

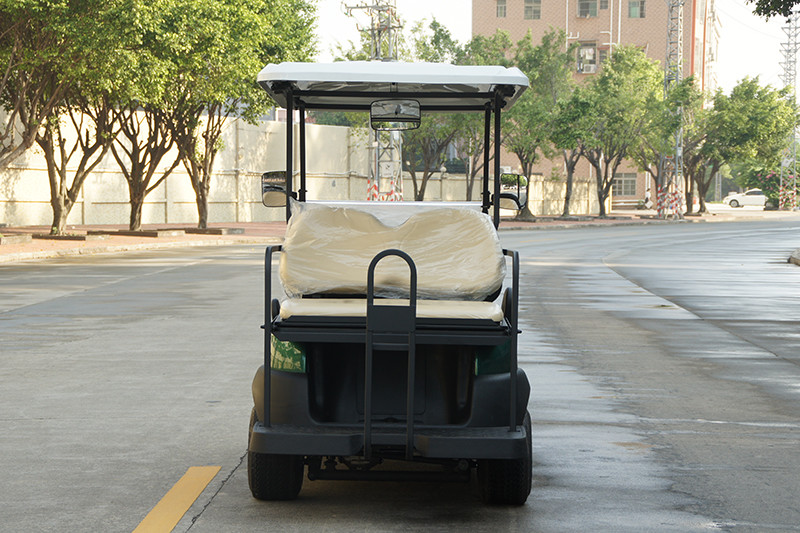

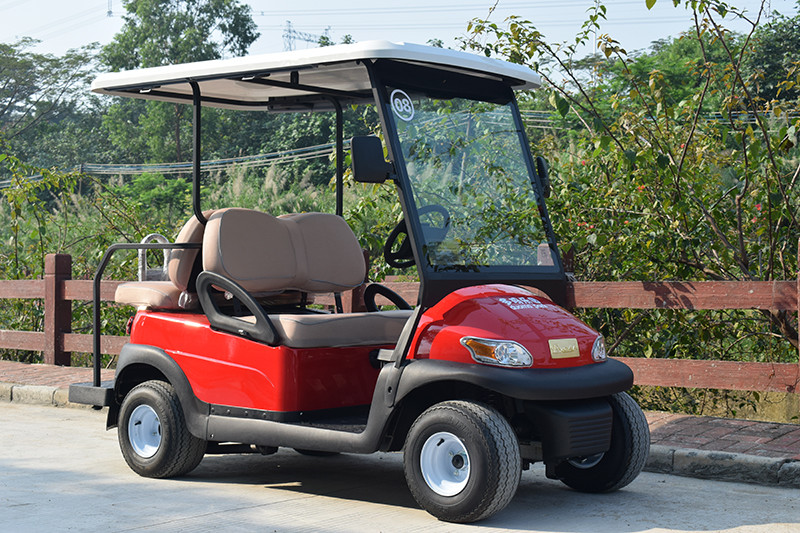

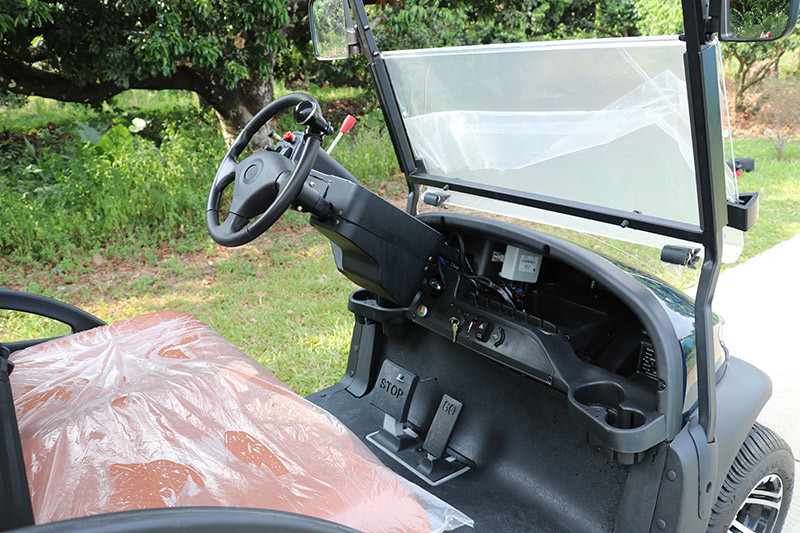

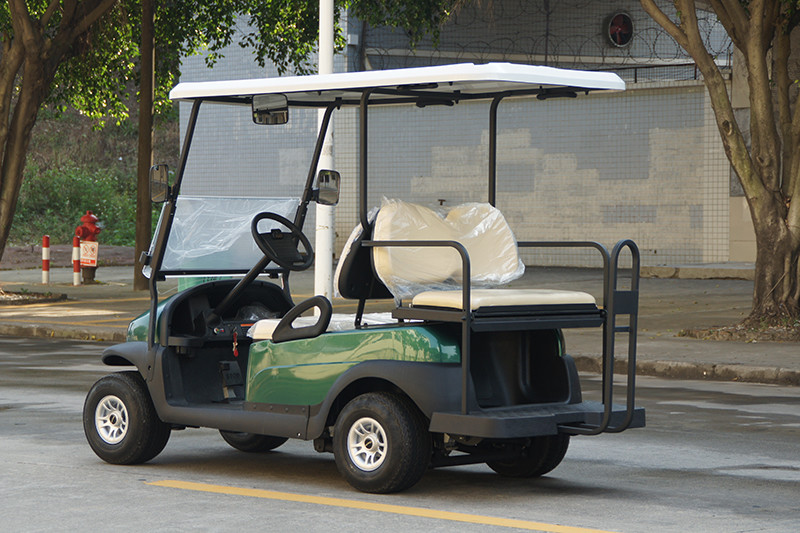

Folding Back Seats Electric Golf Cart 4 Seats CE ApprovedFolding Back Seats Electric Golf Cart 4 Seats CE ApprovedFolding Back Seats Electric Golf Cart 4 Seats CE ApprovedFolding Back Seats Electric Golf Cart 4 Seats CE ApprovedFolding Back Seats Electric Golf Cart 4 Seats CE ApprovedFolding Back Seats Electric Golf Cart 4 Seats CE ApprovedFolding Back Seats Electric Golf Cart 4 Seats CE Approved

Folding Back Seats Electric Golf Cart 4 Seats CE Approved

Folding Back Seats Electric Golf Cart 4 Seats CE Approved

Folding Back Seats Electric Golf Cart 4 Seats CE Approved





Contact details:

Amali Beg/ Sales Dept

Dongguan Excellence Golf & Sightseeing Car Co.,ltd

www.excar.com.cn
